SnapSeam 100 Panel
The SnapSeam 100 Panel is a cost-effective concealed fastener panel with a continuous integral locking seam that does not require the use of separate clips.
Features:
- Architectural panel installed over solid substrate
- Integral snap-lock design provides continuous interlock at sidelap
- Applicable for roof slopes as low as 3:12
- May also be utilized in vertical wall and fascia systems installations
- No panel clips required (fasteners only)
- Standard silicone-modified polyester finish (30 year warranty) available in 12 standard colors
- Optional Kynar finish (35 year warranty) is available
- ANSI/UL 263 fire resistance rating
- ANSI/UL 790 fire tested
- ANSI/UL 580 uplift resistance classified assembly
- UL 2218 impact resistance tested

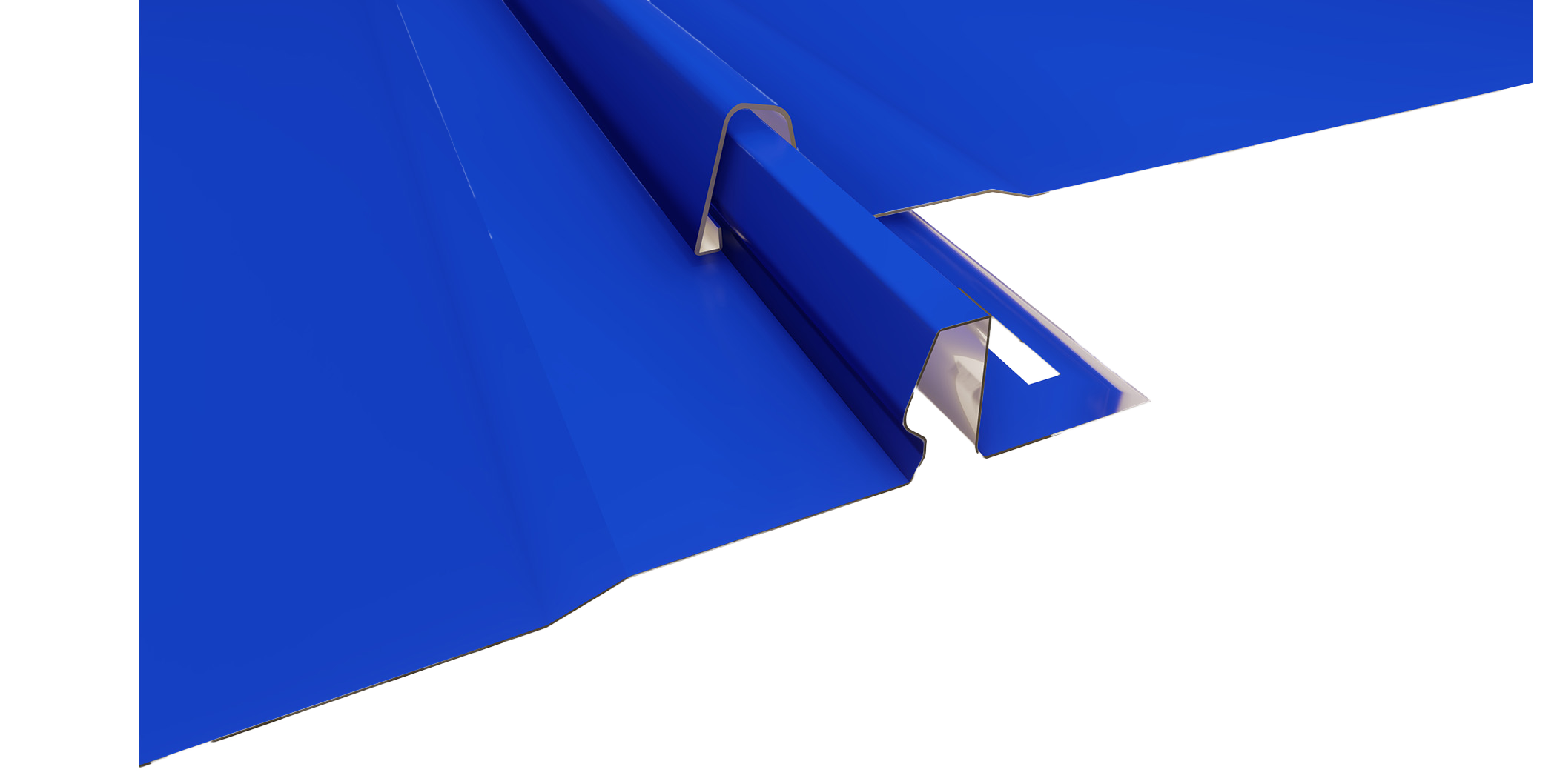

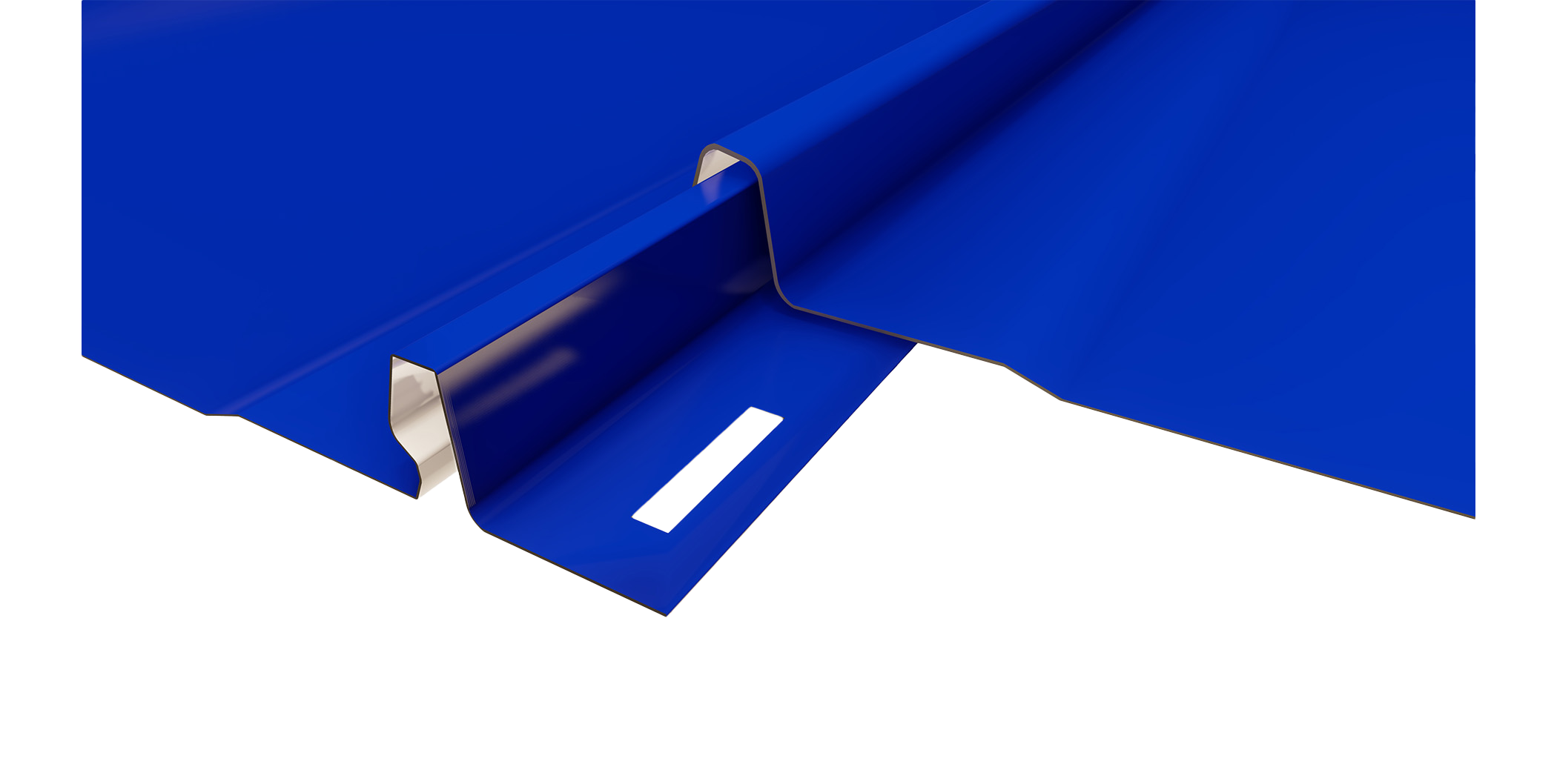

Product Images

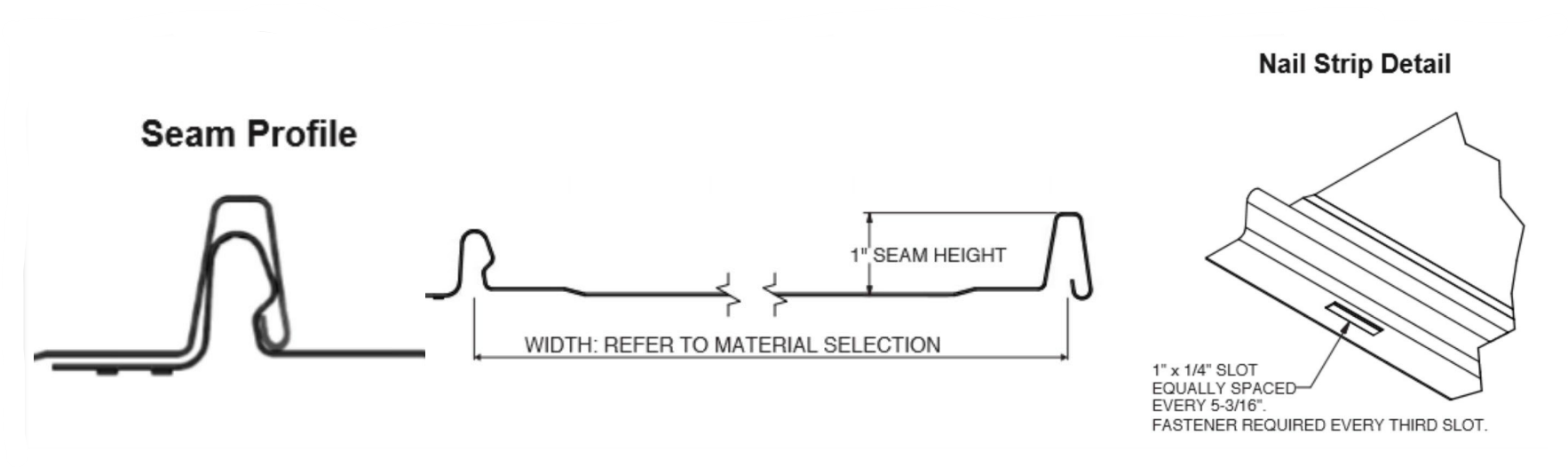

Profiles
Measurements
Available in all TitanTek colors. View our color charts here.
| Material | Standard Widths | Optional Widths |
| Silicone Modified Polyester Finish | ||
| 26 ga. Steel | 16″ | 12″, 20″ |
| Kynar Finish | ||
| .032″ Aluminum | 16″ | 12″, 20″ |
| 24 ga. Steel | 16″ | 12″, 20″ |
| Unfinished | ||
| 26 ga. Galvalume | 16″ | 12″, 20″ |
| 24 ga. Galvalume | 16″ | 12″, 20″ |
| 16 oz. Copper | 16″ | 12″, 20″ |
